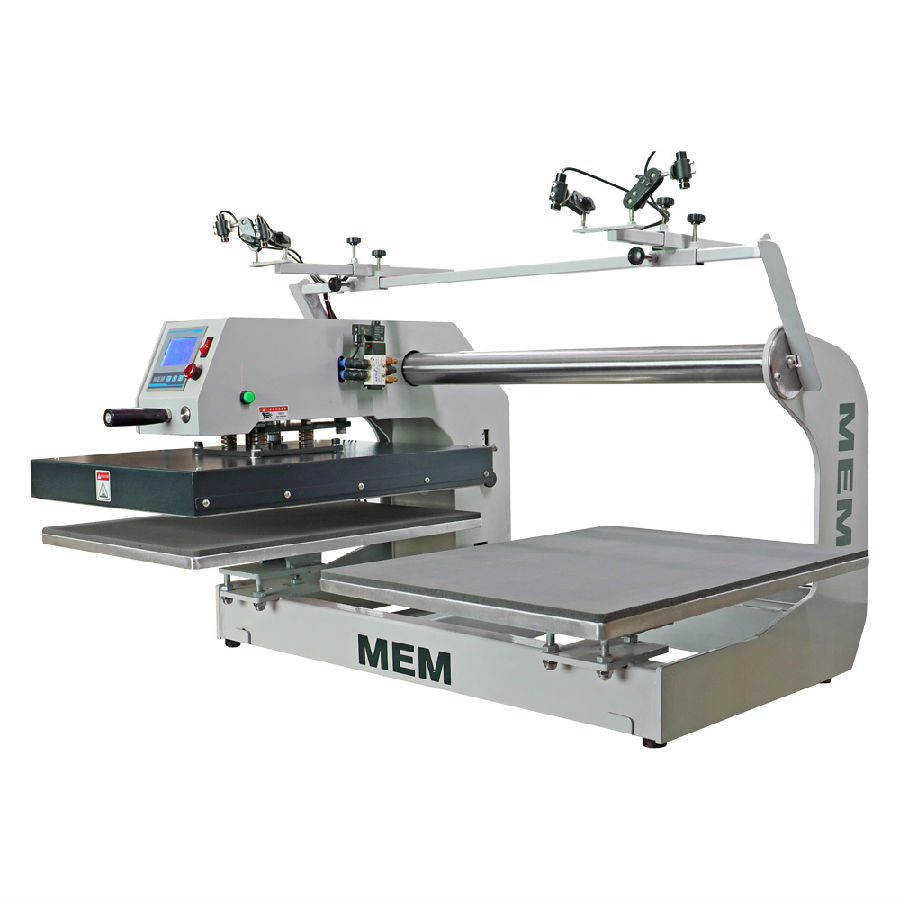

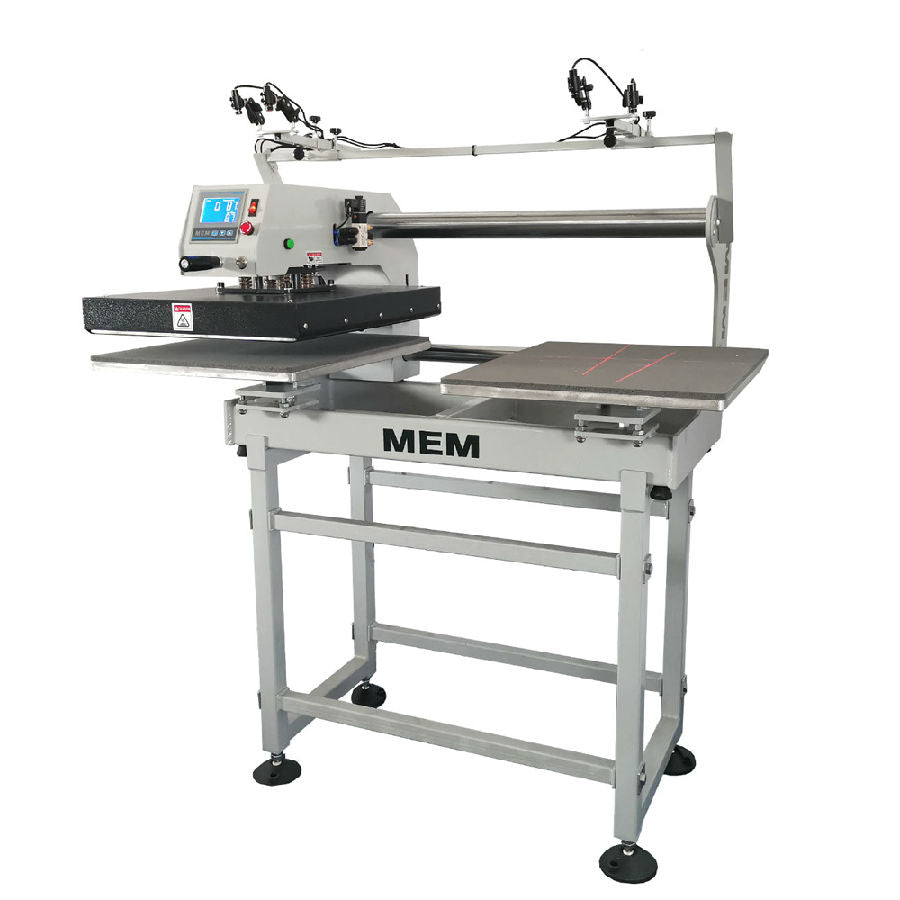

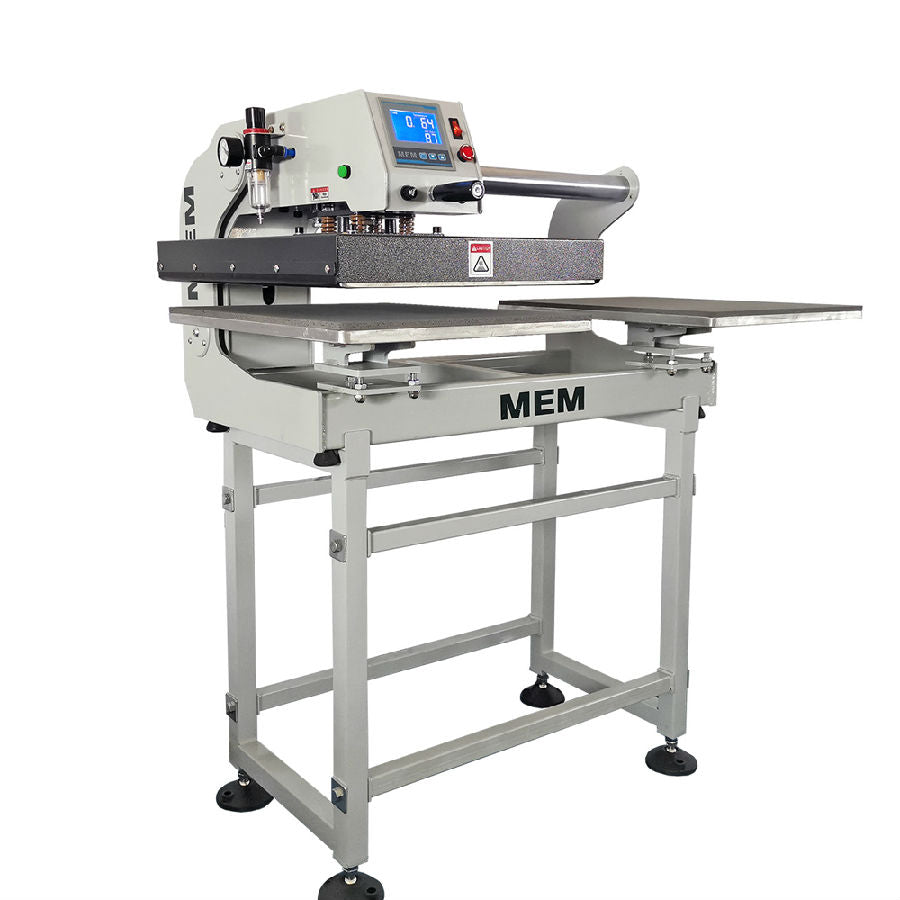

Dual Station Pneumatic Heat Press 40 × 50cm

Name: Dual Station Pneumatic Heat Press 40 × 50cm
Brand: DTF Direct
Price: 4200.0 AUD
Availability: InStock

The MEM Dual Station Pneumatic Heat Press is built for businesses that need to maximise productivity without compromising quality. Featuring dual workstations and automatic pneumatic pressure, it's ideal for high-volume DTF, HTV and sublimation production.

Continuous Production: Load one station while the other is pressing to maximise efficiency and reduce downtime.

Consistent Pneumatic Pressure: Automatic air-powered operation delivers reliable, repeatable results every cycle.

Includes Overhead Dual Laser Guides: Provides accurate transfer alignment for faster setup and consistent positioning.

1
2
3
4
5
6
7
8
9
10 +

Quantity

Key Features

40 × 50cm (16" × 20") Heating Platen
Dual Sliding Workstations for continuous production
Automatic Pneumatic Operation
Heavy-Duty Cast Aluminium Heating Platen
Even Heat Distribution
Adjustable Air Pressure
Adjustable Pressing & Lifting Speed
Digital Temperature & Timer Controls
Emergency Stop Button
Supports Materials up to 40mm Thick
Anti-Static Teflon Sheet Included
Optional Laser Alignment System
CE & RoHS Certified

Description

Please note: An external air compressor is required and is not included.

The Dual Station Pneumatic Heat Press is engineered for commercial print shops looking to maximise throughput and streamline production.

Featuring a 40 × 50cm heating platen and a dual shuttle workstation, operators can prepare the next garment while the current item is pressing, significantly reducing idle time and improving workflow.

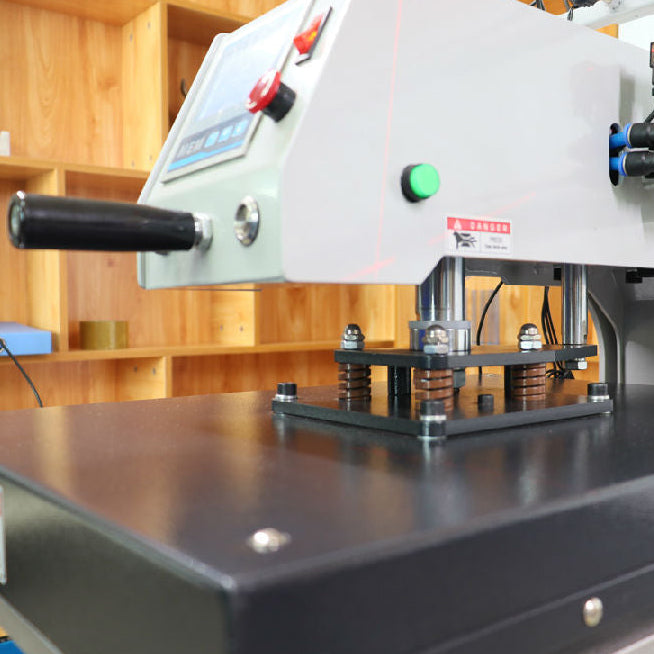

Powered by a pneumatic cylinder, the machine delivers consistent pressure across every press, helping achieve professional-quality transfers while reducing operator fatigue. With adjustable air pressure, digital temperature and timer controls, and a heavy-duty cast aluminium heating platen, this machine is built for reliable performance day after day.

Suitable for DTF transfers, heat transfer vinyl (HTV), sublimation, screen print transfers and other heat transfer applications.

Includes overhead dual laser guides to help achieve fast, accurate transfer positioning and improve placement consistency across production runs.

Technical Specifications

Specification	Details
Model	TQ-4050B
Press Type	Dual Station Pneumatic Shuttle
Platen Size	40 × 50cm
Voltage	220V / 110V
Power	3500W
Temperature Range	Up to 260°C
Timer	0–999 seconds
Maximum Pressure	0.8 MPa (120 PSI)
Maximum Material Thickness	40mm
Air Compressor Required	Yes (Not Included)
Certification	CE & RoHS

Shipping Information

Due to the size and weight of this machine, shipping costs are calculated separately after purchase. Once your order has been placed, we’ll calculate the most suitable freight option based on your delivery address and send you a freight invoice before dispatch.
