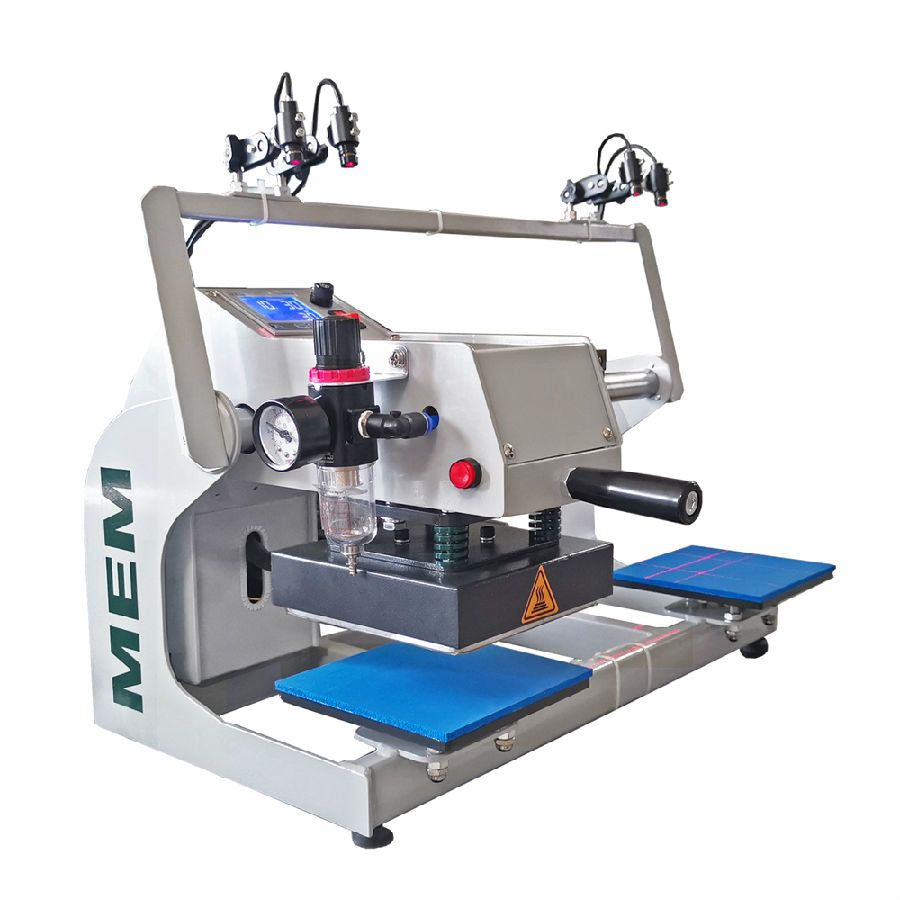

Dual Station Pneumatic Heat Press 15 x 15cm

Name: Dual Station Pneumatic Heat Press 15 x 15cm
Brand: DTF Direct
Price: 1800.0 AUD
Availability: InStock

Take your production to the next level with this Dual Station Pneumatic Swing Away Heat Press, designed for businesses that demand consistent, high-pressure results with minimal operator effort.

Efficient Dual-Station Workflow: Prepare one item while the other station is pressing to reduce downtime.

Ideal for Small Transfers: The 15 × 15cm platens are perfect for neck labels, logos, sleeves, pockets and patches.

Consistent Pneumatic Pressure: The self-balancing system delivers smooth, repeatable pressure across every press.

1
2
3
4
5
6
7
8
9
10 +

Quantity

Key Features

Two 15 × 15cm pressing stations
Pneumatic operation for consistent pressure
Self-balancing pressure system on the heat plate and bottom platen
Thick cast aluminium heating plate for even temperature distribution
Adjustable air pressure with water separator
Adjustable pressing and lifting speeds
Digital temperature and timer controls
Maximum pressure of 0.8 MPa or 120 PSI
Maximum pressing thickness of 40mm
Emergency stop button
Anti-static Teflon sheet included
Optional laser positioning system
CE and RoHS certified

Description

Please note: An external air compressor is required and is not included.

The TQ-1515 Dual Station Pneumatic Heat Press combines a compact footprint with the efficiency of two workstations.

Each station features a 15 × 15cm pressing area, making this machine ideal for smaller DTF transfers, garment labels, chest logos, sleeves, pockets, patches and other compact heat transfer applications.

The dual-station setup allows one item to be prepared while the other is being pressed, helping reduce downtime and improve productivity across medium and large production runs.

Pneumatic operation delivers smooth, repeatable pressure with less physical effort than a manual press. The self-balancing pressure system and thick cast aluminium heating plate help provide even pressure and consistent temperature across the pressing area.

The temperature, pressing time, air pressure, closing speed and lifting speed can all be adjusted to suit different applications and materials.

Technical Specifications

Model	TQ-1515
Voltage and power	220V (600W) or 110V (600W) Check voltage at back side of the head
Time Range	0-999sec.
Max. Temp.	260°C / 500°F
Heat plate size	15x15cm (6"x6")
Dimensions (LWH)	540420360mm (22"x17"x14")
Shipping Dimensions (LWH)	640450400mm (25"x18"x16")
Shipping Weight	31kg (68lbs)
Max. press thickness	40mm
