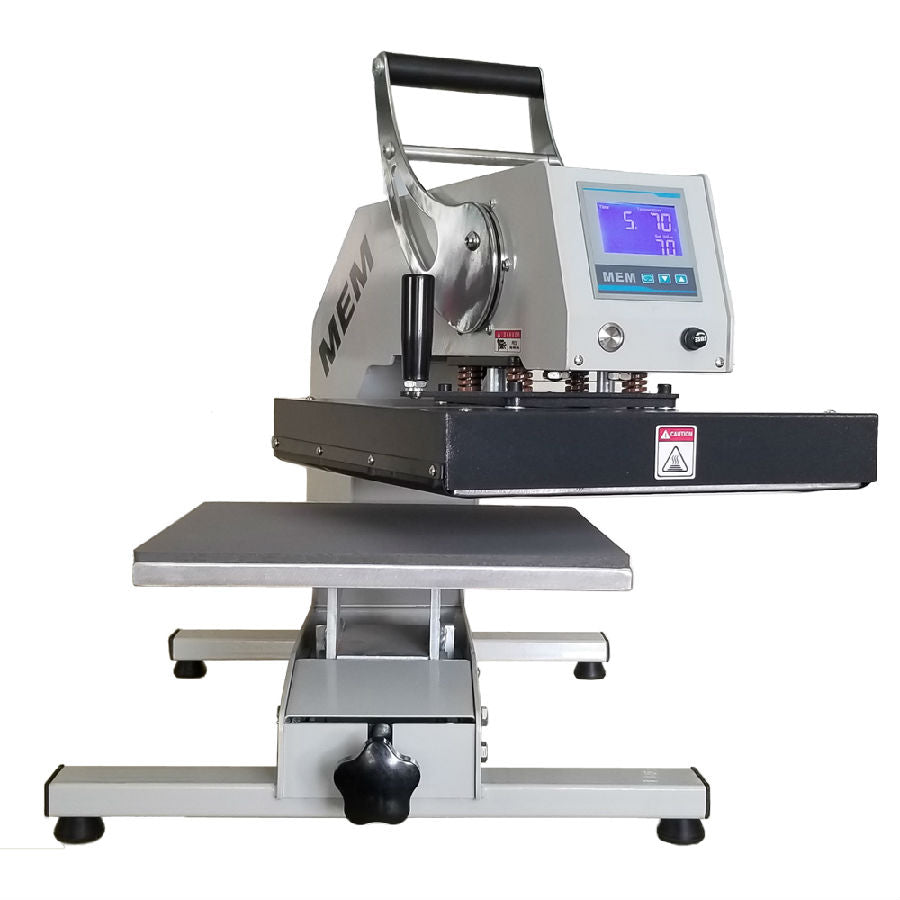

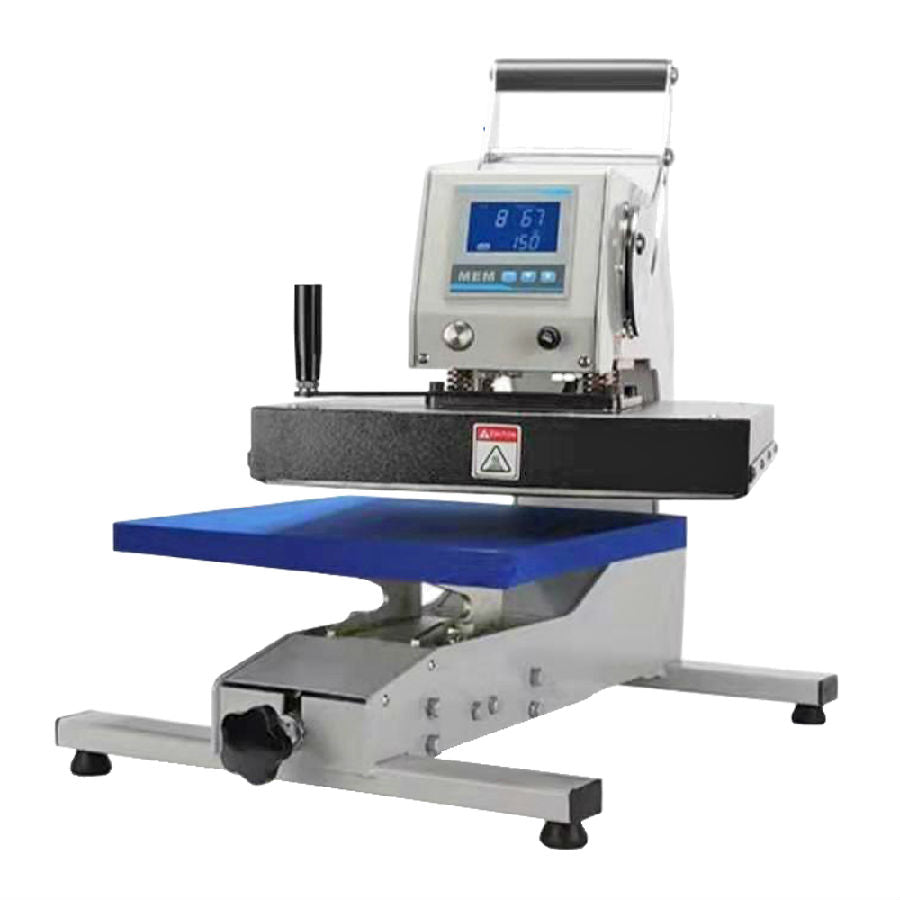

Manual Swing Away Heat Press 40 × 50cm

Name: Manual Swing Away Heat Press 40 × 50cm
Brand: DTF Direct
Price: 1800.0 AUD
Availability: InStock

Designed for growing print businesses, the TA-4050 offers commercial-grade performance without the need for pneumatic operation. The swing away design provides safe, easy access while delivering professional results across a wide range of heat transfer applications.

Perfect Commercial Starter Press: An ideal upgrade for businesses moving into commercial garment decoration.

Even Pressure Every Time: Self-balancing pressure system ensures consistent results across the entire platen.

Built to Last: Heavy-duty industrial construction designed for years of reliable production.

1
2
3
4
5
6
7
8
9
10 +

Quantity

Key Features

40 × 50cm (16" × 20") Heating Platen
Manual Swing Away Design for safe and easy loading

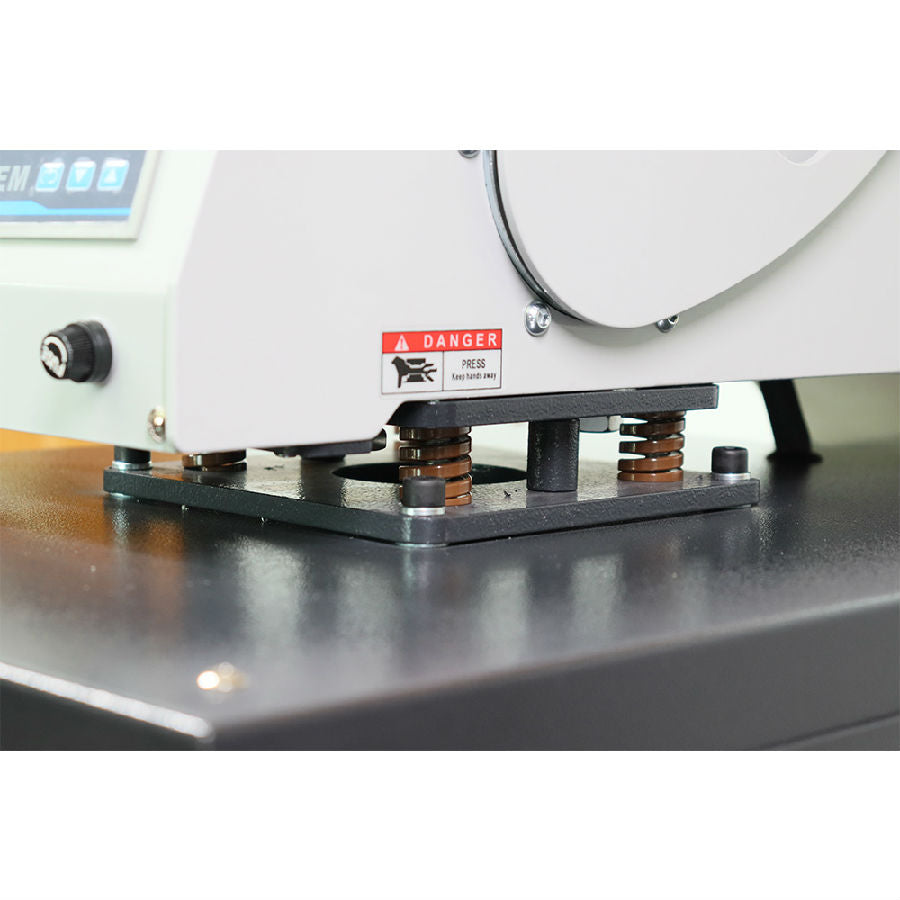

Self-Balancing Pressure System for even pressure distribution
Heavy-Duty Cast Aluminium Heating Platen for consistent heat
Industrial-Grade Steel Construction
Smooth Manual Pressure Adjustment

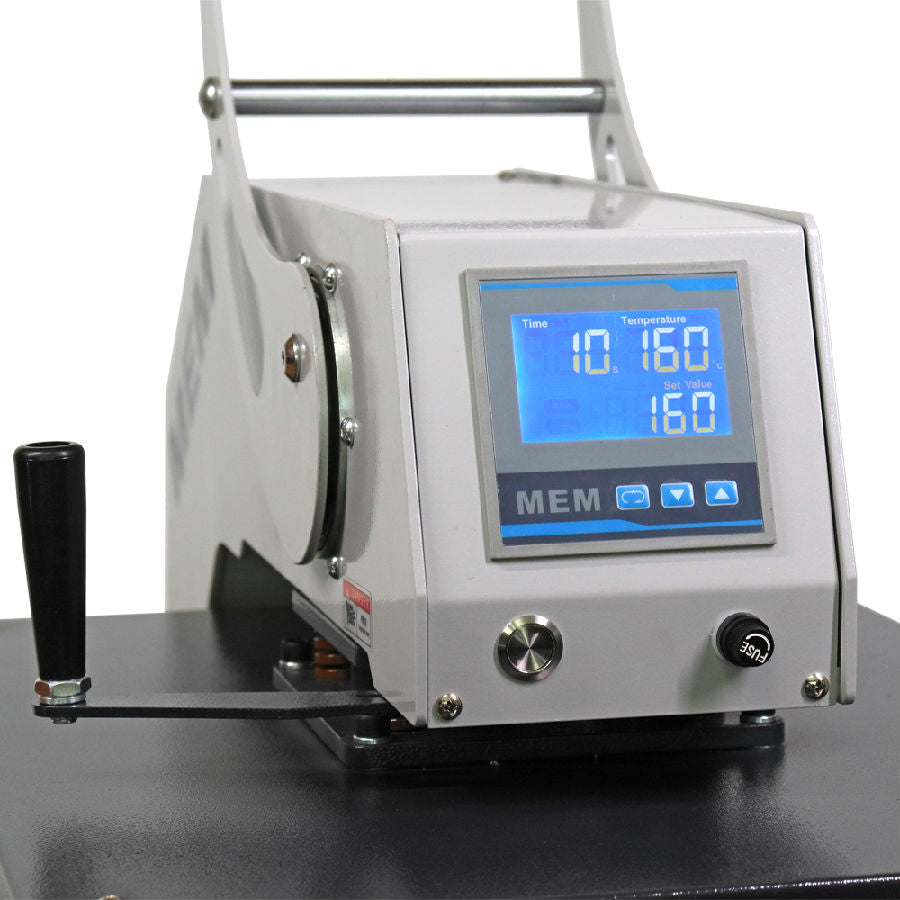

Digital Temperature & Timer Controls
Suitable for Materials up to 50mm Thick
Anti-Static Teflon Sheet Included
CE & RoHS Certified

Description

The TA-4050 Manual Swing Away Heat Press combines industrial-grade construction with simple manual operation, making it the perfect choice for growing print businesses.

Designed with a heavy-duty steel frame and premium electrical components, this press provides the durability and reliability needed for daily commercial production. The self-balancing pressure system delivers even pressure across the heating platen, while the thick cast aluminium heat plate ensures consistent temperature distribution for high-quality transfers.

The swing-away design provides safe, unobstructed access when positioning garments and transfers, making it suitable for DTF transfers, heat transfer vinyl (HTV), sublimation, screen print transfers and many other heat transfer applications.

With smooth manual pressure adjustment, digital temperature controls and a generous 40 × 50cm platen, the TA-4050 is built to produce professional results without the need for an air compressor.

Technical Specifications

Specification	Details
Model	TA-4050
Press Type	Manual Swing Away
Platen Size	40 × 50cm (16" × 20")
Voltage	220V (2700W) or 110V (1800W)
Timer	0–999 seconds
Maximum Temperature	260°C
Maximum Material Thickness	50mm
Machine Dimensions	770 × 420 × 540mm
Shipping Dimensions	840 × 550 × 560mm
Shipping Weight	70kg
Certifications	CE & RoHS

Shipping Information

Due to the size and weight of this machine, shipping costs are calculated separately after purchase. Once your order has been placed, we’ll calculate the most suitable freight option based on your delivery address and send you a freight invoice before dispatch.
